HIGH YIELD
6 MPPTs, 2 strings in parallel
max. efficiency 98.9%
Compatible with bifacial modules (45A Isc_max per MPPT)
Built-in PID recovery function
SMART O&M
Easy commissioning with cell-phone app
Online IV curve scan and diagnosis (depending on monitoring provider)
Fuse-free design with smart string current monitoring
LOW SYSTEM COST
DC/AC ratio greater than 1.5
Compatible with Al and Cu AC cables
Flexible installation from vertical to horizontal
PROVEN SAFETY
NEMA 4X protection rating
Type II SPD for both DC and AC
Compliant with cUL safety and IEEE1547, UL1741
Warranty
10 Years

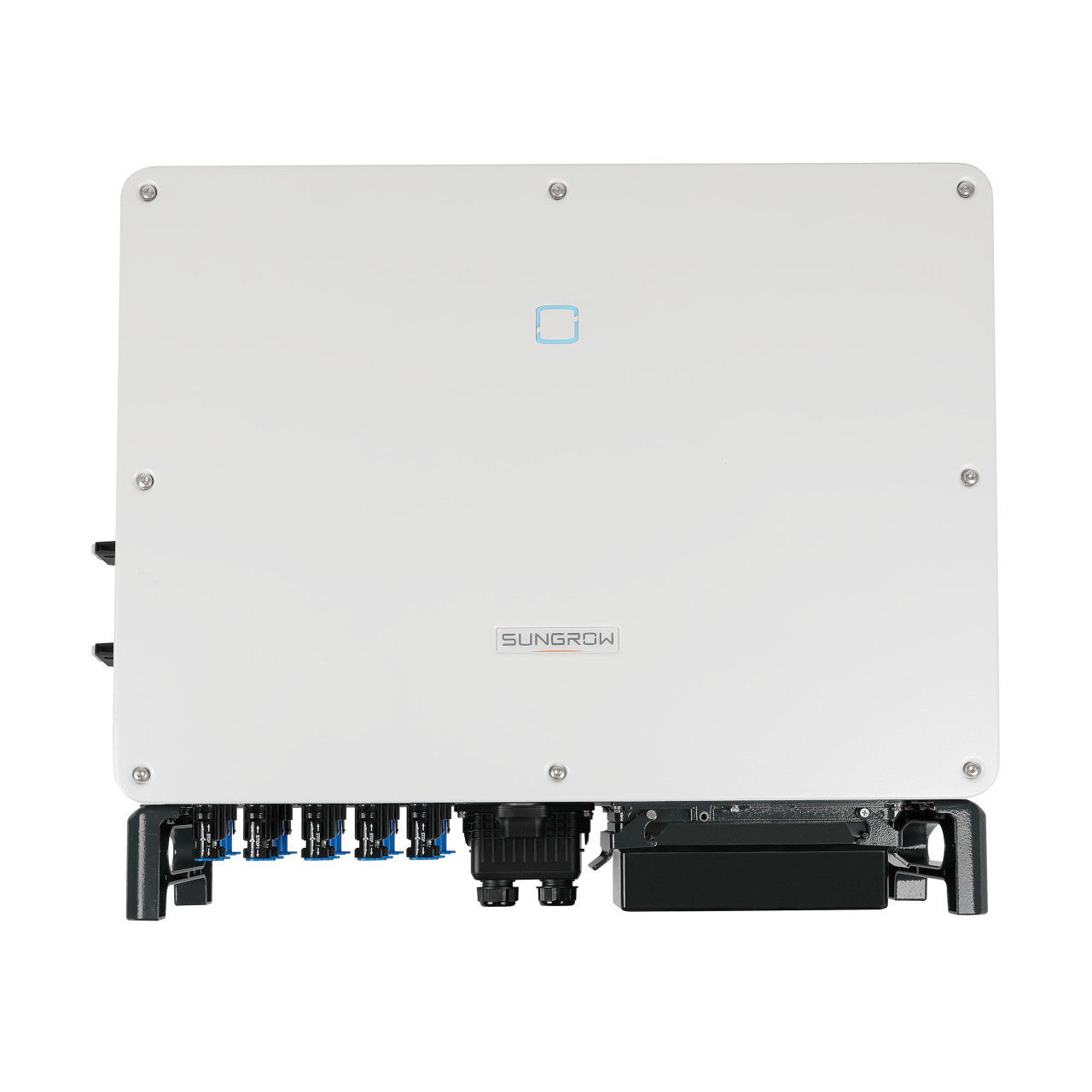

Power Output
60kW
AC Voltage
480V
DC Voltage
1000V
Peak Efficiency
98.8%
CEC Efficiency
98%
Maximum DC Input Voltage
1000V
Maximum Short Circuit DC Input Current
45A
Maximum Operation DC Input Current
26A
Number of MPPT's
6
MPP operating voltage window
200-1000V
Connectivity
RS485 / SunSpec Modbus/ Optional: WiFi and Ethernet
Display
LED, Bluetooth + APP
Cooling Method
Smart forced air cooling
